Pallet Racking Product Builder

A robust and versatile solution for palletised storage, designed to meet the highest standards of safety and performance. Manufactured from industrial-grade steel and tested to FEM standards, it is also fully compliant with EN 15512, EN 15620, EN 15629, and EN 15635.

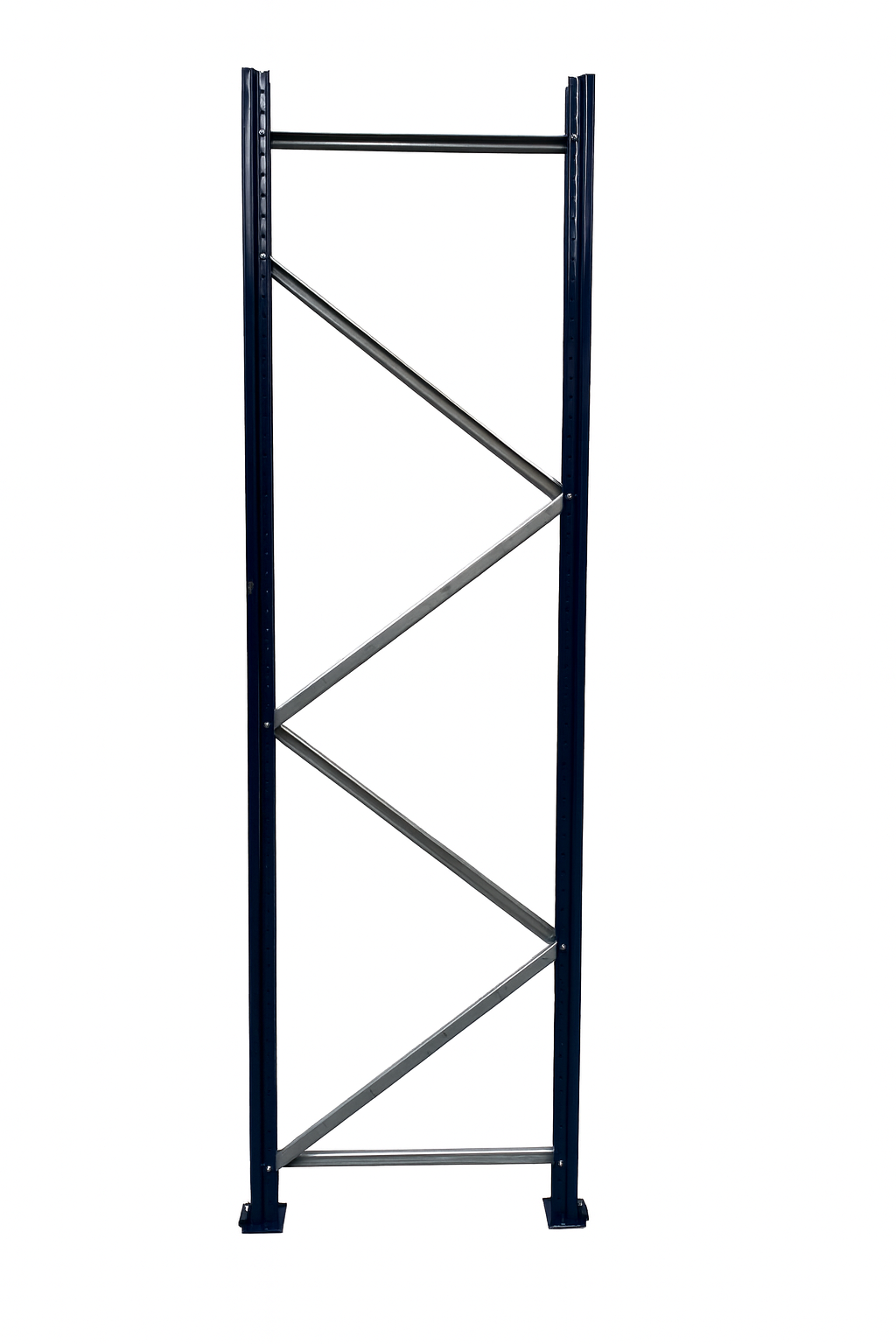

Each bay is supplied with upright frames fully assembled, complete with pre-drilled feet for floor fixing. The uprights are treated with a cataphoresis coating, providing exceptional resistance to corrosion and ensuring long-term durability even in demanding environments. Beams are fitted with integrated safety locking pins, preventing accidental dislodgement under load.

With a load capacity of up to 3300kg UDL per level, this system is suitable for heavy-duty warehouse applications. Uprights are slotted every 50mm, giving maximum flexibility to configure beam levels to suit different pallet sizes.

Depth options are tailored for standard pallets:

• 900mm deep bays – designed for EUR1 (1200w x 1000d) Euro pallets
• 1100mm deep bays – designed for EUR2 (800w x 1200d) UK pallets

The system can also be fitted with timber decking, pallet support beams, or wire decking for enhanced load support and versatility. This starter bay provides a complete standalone section of pallet racking and can be expanded further with extension bays or bespoke configurations to meet your exact storage requirements.

Key Features:

• Up to 3300kg UDL per level (see specification in downloads for details)
• Upright frames supplied fully assembled with pre-drilled feet for floor fixing
• Cataphoresis-coated uprights – enhanced corrosion resistance
• Beams with built-in safety locking pins
• 50mm pitch uprights – easy beam height adjustment
• 900mm or 1100mm depth options – suit Euro and UK standard pallets
• Compatible with timber decking, wire decking, and pallet support beams
• Tested to FEM standards and compliant with EN 15512, EN 15620, EN 15629, EN 15635
• Expandable with extension bays and bespoke solutions

This Mecalux Pallet Racking is the ideal choice for warehouses, factories, and distribution centres seeking a safe, scalable, and heavy-duty pallet storage system backed by over 60 years of manufacturing expertise
