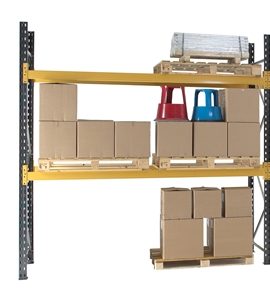

The Used Pallet Racking Starter Bay is a durable and economical choice for businesses looking to expand or upgrade their palletised storage. Manufactured from industrial-grade steel and tested to the latest FEM standards, it combines strength, safety, and long-term reliability at a reduced cost.

Each bay is supplied with upright frames fully assembled, complete with pre-drilled feet for optional floor fixing. Beams are fitted with integrated safety locking pins, ensuring secure connections and preventing accidental dislodgement. Uprights are slotted every 50mm, providing flexibility to adjust beam levels to suit different pallet sizes.

With a load capacity of up to 2000kg UDL per level (see specification in downloads for details), this racking is suitable for heavy-duty warehouse and industrial applications. Depth options are tailored for standard pallet types:

900mm deep bays – designed for EUR1 (1200w x 1000d) Euro pallets
1100mm deep bays – designed for EUR2 (800w x 1200d) UK pallets

Key Features:

Cost-effective used pallet racking – strong and reliable
3300kg UDL per level (see specification in downloads for details)
Supplied with pre-assembled upright frames with pre-drilled feet

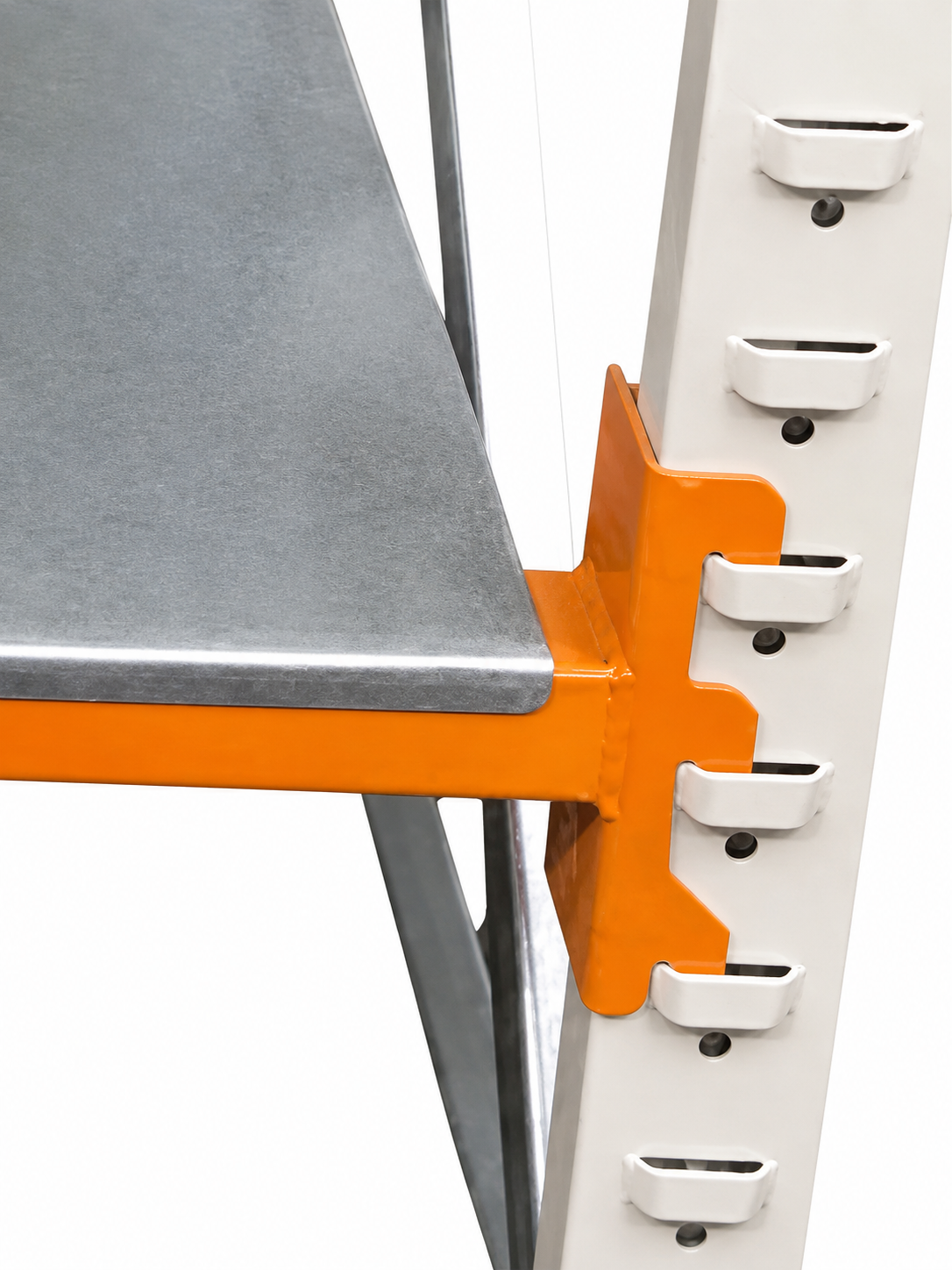

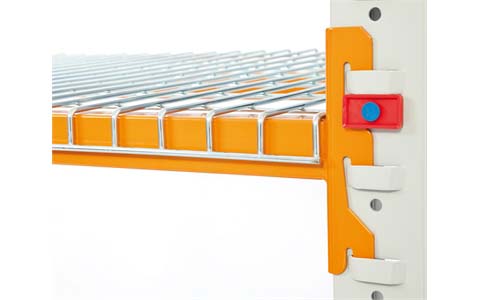

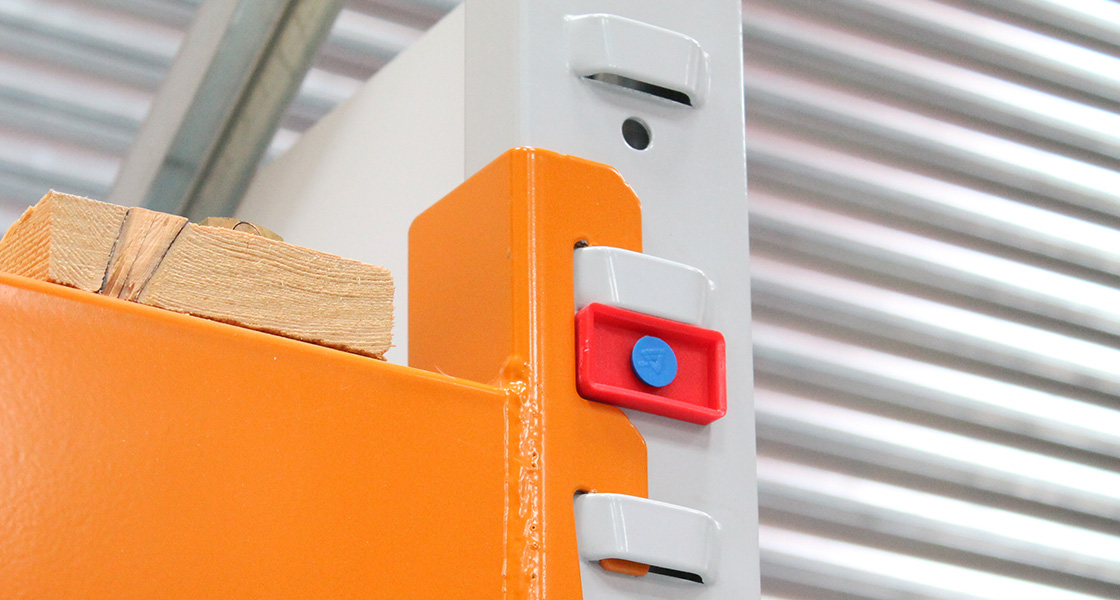

Beams with integrated safety locking pins
50mm beam pitch – adjustable to different pallet sizes
Depth options to suit Euro and UK pallets
Tested to FEM standards for safety and performance

The Used Pallet Racking Starter Bay is an ideal solution for businesses needing a robust and affordable storage system for palletised goods, backed by proven performance in demanding environments.
